Self-Attention Visualizer

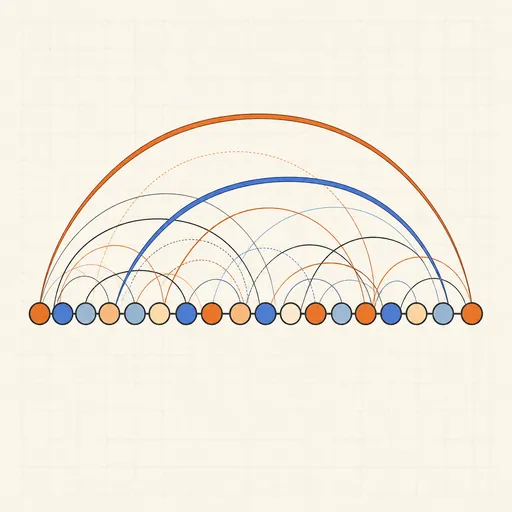

Self-attention is the mechanism at the heart of Transformers: every token looks at every other token and decides how much to attend to it. Type a short sentence or pick a preset, and the tool tokenizes it, builds deterministic pseudo-embeddings with sinusoidal positional encodings, projects them through randomly seeded query/key/value matrices and computes scaled dot-product attention. Click any token in the arc diagram to see where it attends — line thickness equals attention weight — and read the full weight matrix on the heatmap, rows attending to columns. Switch between 1, 2 or 4 heads to see heads mix information differently, sharpen or soften the softmax with the scaling slider, and flip on the causal mask to see how GPT-style decoders block attention to future tokens.
Runs 100% in your browser — models are trained and computed locally on your device.
Read the full guide to this tool
Notes
- Scaled dot-product attention computes softmax(QKᵀ/√d)·V; dividing by √d keeps dot products from growing with dimension so the softmax stays in a usable range.
- Multi-head attention splits the embedding into independent subspaces; each head computes its own attention pattern and real models concatenate the resulting values.
- A causal (lower-triangular) mask sets scores above the diagonal to −∞, so each position attends only to itself and earlier tokens — the property that lets decoders generate text left to right.
- The projections here are random but seeded rather than learned, so the patterns reflect the geometry of the embeddings and positions; in a trained Transformer these matrices are learned end to end.
- Runs 100% in your browser — models are trained and computed locally on your device.
